Rigid

With nearly 50 years of designing and building bicycles and components dedicated to adventures that go beyond limits or expectations, Tom created the new Ritchey WCS Adventure Fork for those of us that are unbound by the constraints of riding-surface type, seemingly insurmountable distances, or what you can carry on your bike. The new one-piece carbon monocoque WCS Adventure Fork with a tapered steerer has been meticulously engineered and painstakingly built to perform with razor-sharp accuracy, deliver a high level of comfort, and offer practical features for all manner of cycling adventures. Built with High Modulus Fiber (HMF), this impeccable adventure fork offers superior strength while also reducing road chatter fatigue on those endless days and nights in the saddle. Smooth internal fiber flow in the crown/steerer area delivers the best force transfer from the crown to the shaft and offers increased impact strength for those potholes you didn’t see. With your desire to ride far and long in any condition or under any circumstance, the WCS Adventure Fork features rack mounts for packs full of gear and a fender mount to keep the grime off you and your bike. Three multi-purpose mounts on the legs give you more places to stow the necessities you gather at the last cafe. Welcoming flat-mount disc brake calipers, the WCS Adventure Fork also fits up to 52mm tires (700c) or 2.4” tires (650b) - depending on tire make and model – making this fork the ultimate addition to any rig assembled for the purpose of seeking, discovering and enjoying adventure.

The Ice Cream Truck fork is made from 4130 CroMoly steel and is designed for Surly's Ice Cream Truck frame. It's ready for trail use and features butted and tapered blades with thru-axle dropouts spaced at 150mm. It has barrel bosses at the dropouts and crown, mid-blade thru-blade eyelets and triple bottle bosses on both fork legs. That's a lot of bosses. 51mm I.S. mounts use front disc spacing. - Axle-to-crown: 483mm - Offset: 47mm - Steerer: 260mm, 1-1/8-inch straight - Tire Clearance: 26 x 5.25-inch

There is beauty in simplicity and it's hard to argue with the simplicity of an unsuspended mountain bike. Despite its uncomplicated nature, ENVE's rigid Mountain Fork is loaded with unique features such as a removable fender, disc brake hose clip, and reversible axle inserts to fine tune the rake of the fork to match your ride preference and application. - Material: Carbon Fiber - Steerer Tube Length: 300mm - Rake: 44, 52 Adjustable - Axle to Crown: 470mm - Brake: Disc - Max Rotor Size: 180mm - Max Tire Clearance: 3.4-inch - Crown Race Diameter: 1.5-inch - Torque Spec: Steer Tube: 5.5 Nm - Torque Spec: Axle: 8Nm - Weight: 711g (w/ fender), 686g (w/ clasps)

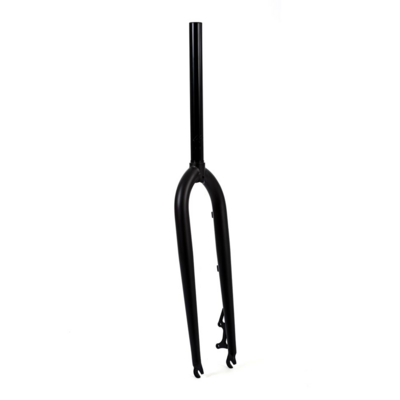

Our XC forks are ideal for your next rigid mountain bike project. We designed these forks to compliment all bikes, with CNC steerer tube and full chromoly construction. - Tapered, multi-butted legs - QR dropouts - Tig-welded together and post weld heat treated for ultimate rigidity and durability - Custom forged drop outs

Matching fork for the Soma Jawbone B-Type frame. - Tange CrMo steel - Fits QR hubs - Axle to Crown: 425mm - Rake: 50mm - IS disc mounts, rotor fit up to 180mm - Two sets of cargo cage bosses per leg, pannier rack bosses on inside and outside leg - Two sets of fender/rack eyelets at fork ends - 29" tire clearance: 2.25" - 27.5" tire clearance: 2.8" - 350mm Steerer Tube If you are getting this fork for the Jawbone, you need a ZS44 headset. Can be used as a rigid fork on some early 90's mountain bikes.

The Whisky No.7 RD fork is a modern caliper road fork for road bikes with tapered steertubes. Their No.7 RD fork features a standard 9mm x 100mm QR axle. It offers low weight, precise handling, and clearance for 28c tires. This is a perfect upgrade fork for in lieu of a steel or alloy fork, and makes a great replacement fork for existing carbon product.

Economically priced hi-tensile steel MTB fork for 26-inch wheels. - Steerer Type: Threaded Steerer - Size: 1" (7/8 ID) - Steerer Length: 198mm - Rake: 45mm - Axle-to-Crown: 393mm - Race Diameter: 27mm - Axle: 3/8" - Thread Length: 95mm

- Hi-tensile steel construction - Available with brake studs or without - 60mm rake - Type: Cruiser Size: 26" - Steerer Type: Threaded Steerer - Steerer Length: 250mm - Axle-to-Crown: 400mm - Axle: 3/8" - Thread Length: 125mm - O.L.D.: 100mm

• Caliper brake mounts • 35mm rake • High-tensile steel construction • 1-inch steerer diameter • 165mm steerer length • Threaded fork • Compatible with 16-inch wheels

• Cantilever brake mounts • 45mm rake • Chromoly construction • 1-inch steerer diameter • 250mm steerer length • Threaded fork

- Hi-tensile steel construction - Caliper brake mount - 35mm rake - Axle-to-Crown: 365mm - Race Diameter: 27mm - Axle: 3/8-inch - Thread Length: 120mm - Steerer Length: 200mm - Steerer Size: 1-inch

- Replacement urban threadless forks - Accepts up to 40mm tire width - Chromoly construction - 1-1/8" steer tube - Size: 700C - Steerer Type: Threadless - Steerer Length: 300mm - Material: Chromoly - Offset: 45mm - Axle-to-Crown: 405mm - Race Diameter: 30mm - Axle: QR

Lugged investment cast crown with cutout in outside tang, long inside tang. Crown drilled for brake. Tange CrMo steel steerer tube and blades. - 1" steerer tube, threadless, 300mm long. - 369mm axle to crown - 38mm and 30mm(only in black) rake. - Lugged crown with Tange Infinity CrMo construction - Threaded models have 50mm of thread - All accept a standard road caliper brake

Odyssey's 41-Thermal forks quickly established a reputation for strength and quality when they originally introduced them in 1999, and they have since gone on to change the standards that all forks are judged by. Their new R-Series forks continue this tradition. FEATURES - Fully redesigned. - Laboratory tested and team proven. - New, custom, seamless, tapered, butted and specially formed leg tube shaping for improved grind and guard clearance. - All-new steerer tube design improves fatigue strength and includes a built-in, integrated, lower headset seat race. - New, optimized, 4mm dropout shape for grind and peg clearance. - Updated 7075-T6 pre-load bolt - Proven 41-Thermal processed 4130 chromoly - Legendary lifetime replacement warranty SPECS - 32mm traditional offset - 3/8” axle slots only Starting at 1lb 15.2oz (885 grams)

• Cantilever brake mounts • High-tensile steel construction • Threaded fork • Steerer diameter: 1-inch • Steerer length: 200mm

• Cantilever brake mounts • 45mm rake • Chromoly construction • 1 1/8-inch steerer diameter • Threadless fork

• Caliper brake mounts • 45mm rake • Chromoly construction • Threadless fork • 300mm steerer length

- T700S monocoque carbon fiber - 300mm tapered carbon steerer - Clearance for up to 28c tires - 12x100mm carbon fiber dropouts with aluminum inserts - 45mm rake - 440g

The Kingpin Deluxe fork is perfect for fat bike expeditions, keeping you nimble even when fully loaded. Dual Three-Pack mounts on each leg let you attach water bottles or Anything Cages, and mid-blade mounts fit low rider racks for panniers. Or, ditch the gear and hit the trails with an ultra-light and responsive fork. - High modulus carbon fiber construction - Tapered 1-1/8" to 1-1/2" steerer tube - 160 minimum rotor size; 203mm maximum rotor size - Dual sets of Three-Pack mounts on each fork leg for Anything Cages or water bottles - Mid-blade mounts for low rider racks - Internal routing for 150mm spaced dynamo hubs - Maximum Tire / Rim sizes: 26 x 5", 27.5 x 4.0", 29 x 3.0" - 150 x 15 mm thru axle included - Front Axle Size: 15 x 198L, TP=1.5, TL=9

The Firestarter Carbon Fork is Salsa's high-end, rigid bikepacking fork. This sure-tracking platform features a carbon structure and 15mm thru-axle design, and the Three-Pack mounts on the forward portion of each leg allow use of Salsa Anything Cages or extra water bottle cages. - Axle to Crown Length: 483 mm - Brake Mount (Fork): Post Mount 160 - Crown Race: 40 - Front Axle: 15mm Thru x 100mm - Wheel Mount Center Offset (mm): 0 - S.H.I.S. Stem Clamp Diameter: 28.6 - Steerer Type: Tapered - Steerer Tube Length (mm): 260 mm - Weight: 620 g - Wheel Size: 29er, 29+, 700c - Rotor Size (Fork): 200 - Maximum Tire Clearance (Fork): 3

With vibration-muting carbon blades, and alloy steerer and crown, the Comp carbon/alloy cross and road fork is ideal for cyclocross pursuits or road riding. - Material: carbon blades / alloy steerer, crown, and dropouts - 1-1/8" straight steerer - Steerer length: 300mm - Axle-crown: 391mm - Rake/Offset: 48mm - Crown diameter: 45mm (1-1/8") - Spacing: 57mm - Minimum tire clearance: 6mm - Wheel compatibility: 700c - Fender mounts

Lightweight, stiff, compliant, and available in three sizes to give you more choices for converting your bike over to rigid. With 34mm carbon legs and forged aluminum crowns and dropouts, the Rock Solid family of forks will make your machine a precise, feather-weight, singletrack screamer. 490mm, 465mm, and 445mm models are available. - Designed for 26", 27.5", or 29" wheel MTB applications, disc only (74mm post-mount) - 34mm carbon legs with forged aluminum crown and dropouts - Max Rotor Size 185mm or may void the warranty - 3 different sizes for optimal ride height.

• Chromoly construction • V-brake mounts • I.S. disc mount • Fits bikes with 20-inch wheels • Steerer length: 250mm

• Chromoly construction • V-brake mounts • Fits bikes with 16-inch wheels • Steerer length: 250mm

Tom Ritchey was riding off-road decades before gravel riding was ever a "thing," and the new WCS Carbon Cross Gravel Fork is the manifestation of the experiences enjoyed on all of those dirty rides mixed with the legendary engineering for which Ritchey is famous. Built from life and ready for your drop bar off-road adventures, this full monocoque carbon fork delivers precision and confidence while offering stability and comfort along some of the more rugged terrain you'll encounter. With logical features—like enough room tires up to 40mm wide, the ability to run 12 or 15mm thru-axles, and ability to run flat-mount disc brakes—the Ritchey WCS Cross Gravel Fork is ideal for long-distance gravel events, your local cyclocross series, spontaneous weekend adventures, and everything in between. - Material: carbon fiber - 1-1/8" straight steerer with integrated 45-degree crown race - Fits 1-1/8 and 44mm headtubes with appropriate headsets - 100x12mm thru-axle (included) - Flat Mount disc brake - Disc brake rotor compatibility: 140 / 160mm - Steerer length: 300mm - Crown diameter: 47mm - Axle-Crown: 383mm - Rake/Offset: 47mm - Spacing: 53mm - Minimum tire clearance: 6mm - Wheel compatibility: 700c - Weight: 430g (with uncut steerer / not including axle)

This beauty here was designed alongside Surly's Midnight Special frame. In an effort to shed a few grams (it's for a road bike after all), they opted to utilize a unicrown design rather than a lugged one. In addition to the weight savings, it also looks really nice — don't you think? Like the Midnight Special frame, this fork is equipped with modern road standards like flat mount disc brakes and a 12 x 100mm thru-axle. For increased versatility, it has braze-ons for fenders and racks (including mid-blade!). - 100% CroMoly construction, fully brazed crown - Mid-blade thru-blade eyelets - Rack and fender eyelets at the dropout - 12 x 100mm thru-axle - Clearance for 27.5 x 2.32 or 700c x 42mm tires

The Dinner Fork is non-suspension corrected and accommodates 26", 27.5", and 29" wheel sizes. If you want to run fenders alongside an 8 or 24-Pack style rack, this fork can do that. Hell, it relishes it. To give you even more options for carrying miscellaneous items, we put a set of 3-pack mounts on each fork blade, too. Run it on your current Surly for a thought-provoking new experience, or throw it on a different rig to unlock some off-road capabilities. A truly versatile piece of cutlery, the Dinner Fork features 100% Surly Chromoly steel construction, 51mm IS disc brake mounts, and clearance for tires up to 26 x 3.0", 27.5 x 2.8", or 29 x 2.2". Specifications: - Axle-to-crown: 420mm - Offset: 50mm - Steerer: 350mm, 1-1/8" straight - Tire Clearance: 26 x 3.0" (without fenders); 27.5 x 2.8" (with or without fenders); or 29 x 2.2" (without fenders) - Weight: 2.75 lb.

Made from revised 100% Cult Classic tubing for increased strength and then 100% post-weld heat treated. 1-pc machined steerer tube with an integrated bearing race, tapered legs, and plenty of tire clearance.

A truly all season, all terrain fork for fat-bikes with maximum tire clearance. This fork utilizes a reversible drop-out chip that adjusts the rake, allowing for multiple wheel sizes. With over 10 years of carbon experience, ENVE is the trusted source for many when it comes to forks. After creating the most innovative rigid mountain fork in the market, we set our sights on fat bike forks. Like all ENVE Forks, the Fat Fork is molded in one-piece from the steerer to the drop-outs and utilizes a reversible chip to adjust for optimized handling with 26 or 27.5-inch wheels. Adding trusted reliability and lightweight design to 5-inches of tire clearance, this is the upgrade to have for your all-season rig. - Material: Carbon - Weight: 748g - Steer Tube length: 350mm - Rake: 42mm, 51mm (adjustable) - Axle To Crown: 488.8mm - Max Rotor Size: 160mm - 203mm - Max Tire Clearance: 5.2-inch - Crown Race Diameter: 1.5-inch - Torque Spec – Steer Tube: 5.5Nm - Torque Spec - Axle: 8Nm

Riding rigid isn’t for everyone, but for those who value functional simplicity, the updated ENVE Mountain Fork delivers. BOOST (15X110MM) - Material: Carbon - Accessory Mounts: Yes - Weight: 719g with Fender, 676g (w/ clasps) - Travel Correction: 120mm (Compatible with frames designed around 100mm-140mm Travel Forks) - Steerer Tube Length: 300mm - Rake: Adjustable – 44mm, 52mm - Axle To Crown: 490mm – 44mm Rake Position; 492mm – 52mm Rake Position - Brake: Disc - Brake Mount: Post Mount - Axle Compatibility: 15 x 110mm - Max Rotor Size: 180mm - Max Tire Clearance: 29 x 3.0” with Fender - Crown Race Diameter: 1.5” - Torque Spec: Steerer Tube: 5.5 Nm - Torque Spec: Axle: 8 Nm
