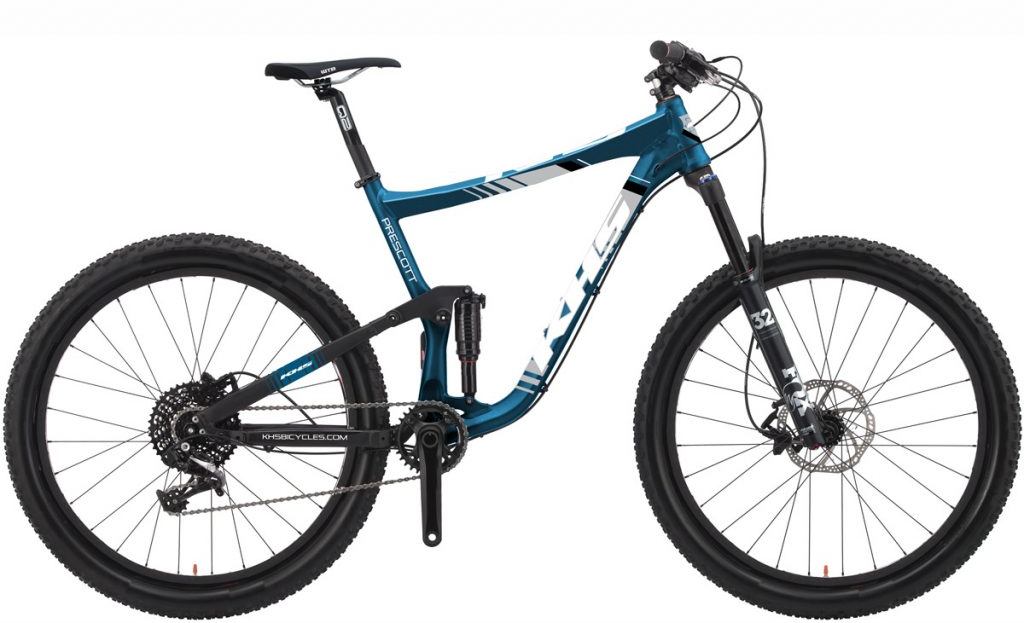

KHS Prescott

KHS Prescott
$4,479.00
Color: Metallic Blue
Size: Select size
Please select options Unavailable
This item is not permitted to be shipped. However, it can be purchased online and picked up, or local delivery can be arranged. In some cases, we can ship the item to your local bike shop. Please email info@ridebrooklynny.com for more information.

Details

Mountain bikes are just that, a bike to take to off road into the mountains. These bikes typically have suspension forks and/or rear suspension. KHS makes Mountain bikes that give you a comfortable fit to help you be able to get and ride all day long.

Geometry Chart:
SizeSmall/16Medium/17.5Large/19
s/t c-t 410/16.1 440/17.3 490/19.3
h/t° 67° 67° 67°
s/t° 77° 77° 77°
t/t effectv 579/22.8 612/24.1 640/25.2
c/s 438/17.2 438/17.2 438/17.2
BB Height 326/12.8 326/12.8 326/12.8
s.o. 0/0 0/0 0/0
h/t L 95/3.7 105/4.1 120/4.7
Stack 583/23 592/23.3 606/23.9
Reach 445/17.5 475/18.7 500/19.7

Specs

Frame 29” Full MSD Carbon, 4-bar Horst 100mm Travel, 1-1/8~ 1.5 Taper, 12x148mm Boost, 27.5 Plus Compatible
Fork FOX Float 32, 29 Std/27.5+ Evol Air, Rhythm, 100mm, Grip Sweep Adj., Ext Rebound Adj., 1-1/8~1.5 Taper, 15mm X 110 QR Boost
Rear Shock X-Fusion 02 Pro RL, Air, Ext Rebound, Lock-Out
Rims WTB ST-I25 TCS, Disc, Double Wall, 29x28H, Tubeless-Ready
Hubs Front: Shimano HB-M7110-B CenterLock Disc, 15x110mm Axle, Boost
Rear: Shimano FH-M7110-B Disc Cassette, 12 x 148mm, Boost
Spokes 14/15g Black Stainless, w/Aluminum Nipples 28x28
Tires Kenda Booster Pro, 120TPI Folding, Tubeless-Ready, 29x2.2''
Bottom Bracket SR Outboard Cartridge Bearing
Crankset SR Zeron, 2-piece, Boost, 32T Zig/Zag, S:170, M-L:175
Shifters Shimano SLX, SL-M7100, 12s, Trigger, Right Only, I-Spec EV
Rear Derailleur Shimano SLX, RD-M7100
Cassette/Freewheel Shimano CS-M6100, 10-51T, 12-Speed
Chain Shimano CN-M6100
Brakes Shimano M6100, Hydraulic Disc, Servo Wave, 180/160mm, Rotors= RT64 CenterLock
Brake Levers Shimano M6100, Servo Wave. I-Spec EV
Handlebars FSA Comet Low Riser, 31.8mm, 720x15mm
Tape/Grips Q2 Lock-on
Stem FSA V-Drive, 3D Forged, 4-bolt, 6 Degree, 31.8mm, S:70mm, M-L:80mm
Headset FSA Orbit C-40-CF-ACB, N.42/CF/ACB, 1-1/8”~1.5” Integrated
Seatpost Q2 Carbon, 31.6mm
Saddle WTB Volt Med SL
Pedals Sold separately

* Subject to change without notice.

Part Numbers

Option UPC MPN
Metallic Blue / Small 756928937644 921780000
Metallic Blue / Medium 756928937651 921780001
Metallic Blue / Large 756928937668 921780002
