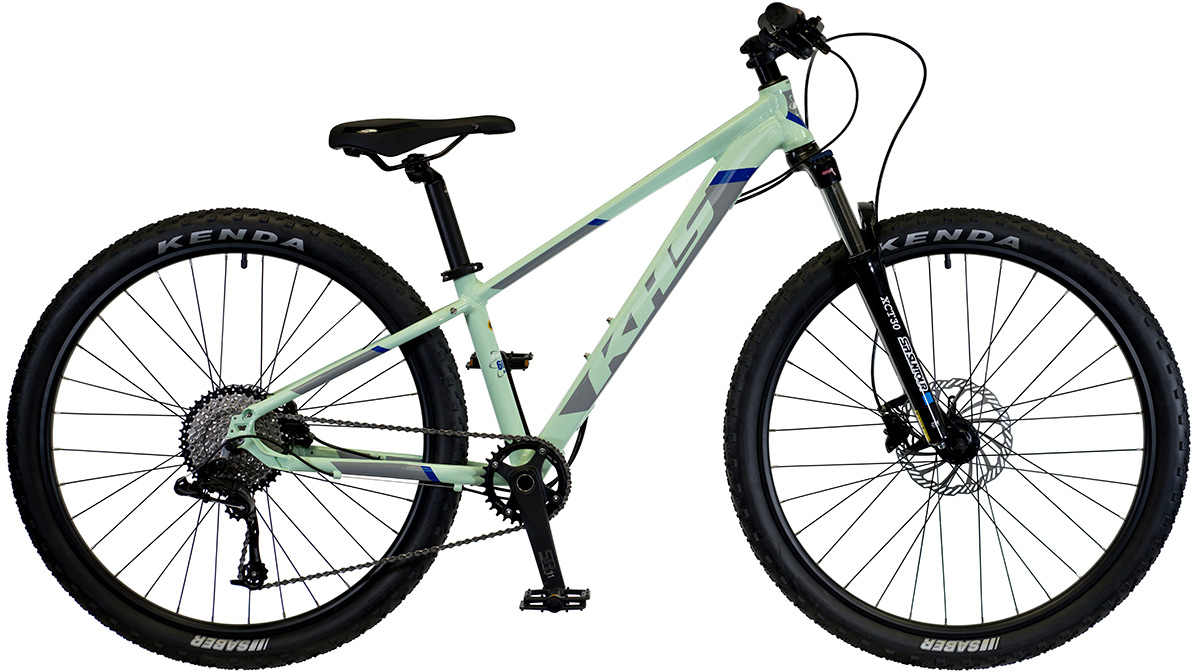

KHS Winslow

KHS Winslow
$769.00
Color:
Mint
Size:
X-Small
Please select options
This item is not permitted to be shipped. However, it can be purchased online and picked up, or local delivery can be arranged. In some cases, we can ship the item to your local bike shop. Please email orders@ridebrooklynny.com for more information.

Details

Mountain bikes are just that, a bike to take to off road into the mountains. These bikes typically have suspension forks and/or rear suspension. KHS makes Mountain bikes that give you a comfortable fit to help you be able to get and ride all day long.

Geometry Chart:
X-Small/13Small/15Medium/17Large/19X-Large/21
s/t c-t 330/13 381/15 432/17 483/19 533/21
h/t° 67° 67.5° 67.5° 67.5° 67.5°
s/t° 73° 73° 73.6° 73.6° 73.6°
t/t effectv 580/22.8 591/23.3 612/24.1 635/25 635/25
c/s 430/16.9 430/16.9 435/17.1 435/17.1 435/17.1
BB Height 295/11.6 295/11.6 312/12.3 312/12.3 312/12.3
s.o. 708/27.9 734/28.9 779/30.7 823/32.4 844/33.2
h/t L 90/3.5 90/3.5 100/3.9 115/4.5 130/5.1
Stack 590/23.2 590/23.2 596/23.5 610/24 624/24.6
Reach 400/15.7 413/16.3 430/16.9 445/17.8 472/18.6

Specs

Frame 6061 Aluminum w/Custom Formed T/T & D/T, w/Replaceable Derailleur Hanger, XS-S:27.5”, M-XL:29”, Internal Cable Routing
Fork SR XCT30, HLO. 100mm, Hydraulic Lock-Out, Preload Adjust, XS-M:27.5”, L-XL:29”
Rims XS-S: Aluminum Disc Double Wall, 27.5x32H, M-XL: 29x32H
Hubs Front: Aluminum Disc w/CNC Rotor Flange, QR
Rear: Aluminum Disc w/CNC Rotor Flange, QR, Cassette
Spokes 14G Black 32x32
Tires XS-M: Kenda Saber Pro, 27.5x2.25", L-XL: 29x2.25"
Bottom Bracket Outboard Cartridge Bearing
Crankset Aluminum 2-pc, 32T, Narrow/Wide, XS-M:170, L-XL:175
Front Derailleur S-Ride, SL-M300C, 9-Speed
Rear Derailleur S-Ride, RD-M300C, 9-Speed
Cassette/Freewheel CS-M300C, 11-42T, 9-Speed
Chain KMC X9 w/MissingLink
Brakes Shimano MT200 Hydraulic Disc, 180/160mm: 27.5”, 180/160mm: 29” Rotors, Wave 12
Brake Levers Shimano BL-MT200
Handlebars KHS Aluminum Riser, 31.8mm, 720x20mm; Ladies: 680x20mm
Tape/Grips Q2 Lock-on
Stem KHS Aluminum Threadless 4-bolt, 6-degree, 31.8mm, XS-S:60mm, M:75mm, L-XL:90mm
Headset Threadless Zero Stack, 1-1/8"
Seatpost KHS Aluminum Micro-Adjust 31.6mm
Saddle KHS Sport
Pedals Resin ATB Platform w/DU Bearings

* Subject to change without notice.

Part Numbers

Option UPC MPN
Mint / X-Small 756928937279 42-1480
