Details

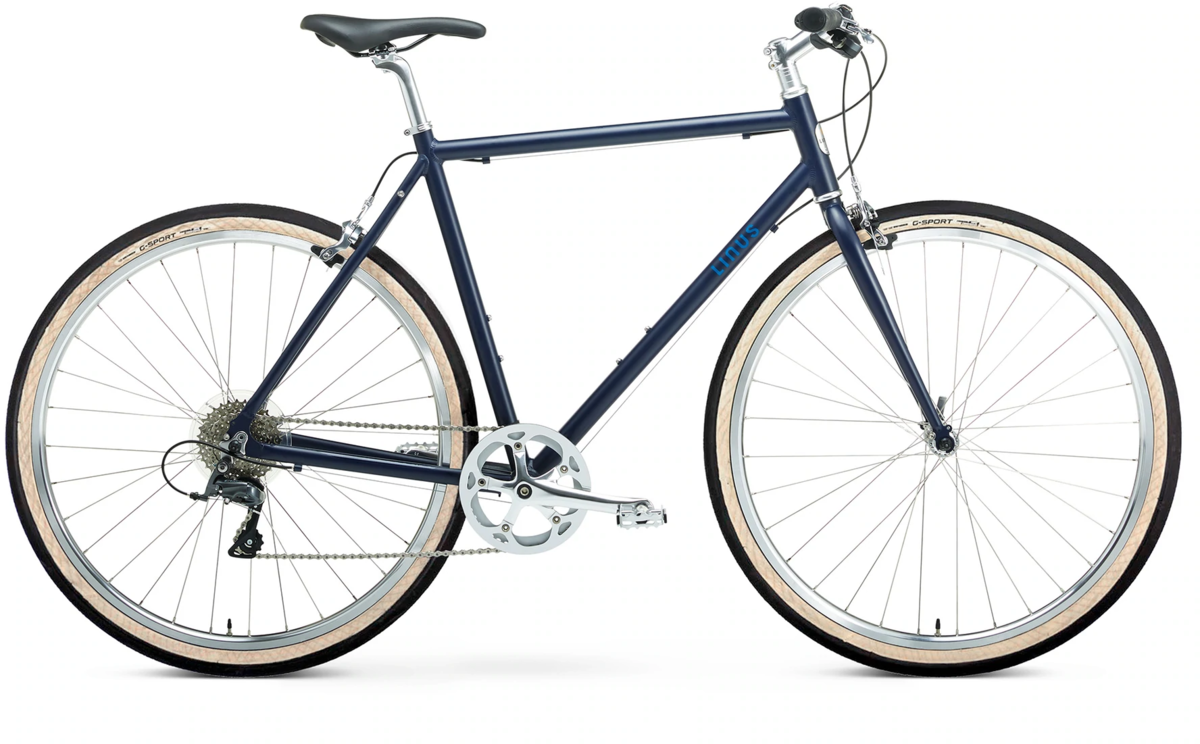

Our most performance-driven, diamond frame bike is well-suited for both quick errands and longer commutes. Voluminous gumwall tires complement the lightweight alloy frame while matte shades of indigo and black establish an air of understated class.
Key Bike Features:
- 8-speed Drivetrain
- Front and rear reflectors
- Black anodized alloy fenders
- Anatomic black gel grips
- Black touring saddle
Size | Small | Medium | Large | X-Large |
---|---|---|---|---|
FRAME SIZE (cm) | 50 | 53 | 56 | 59 |
STANDOVER HEIGHT (cm) | 74 | 76.8 | 79.6 | 82.6 |
EFFECTIVE TOP TUBE LENGTH (cm) | 52.5 | 54 | 57 | 61 |
Size | Height (inches) | Height (cm) |
---|---|---|
Small | 5'2" - 5'5" | 157.4 – 165.1 |
Medium | 5’5” - 5’9” | 165.1 – 175.2 |
Large | 5’9” - 6'0" | 175.2 – 182.8 |
X-Large | 6’0” - 6'3" | 182.8 – 190.5 |
Specs
Frame | 6061 aluminum |
---|---|
Fork | Chromoly |
Rims | 700c 32-hole alloy rim |
Hubs | Aluminum, loose ball bearings |
Spokes | 14 gauge stainless steel with brass nipples |
Tires | Vee Tire 700x35mm w/ Tan Sidewall |
Bottom Bracket | Sealed |
Crankset | Aluminum crank, 44T chainring |
Shifters | Shimano Claris 8-speed |
Cassette/Freewheel | Shimano 8-speed |
Chain | KMC Z-72 |
Brakes | Tektro Dual-Pivot Caliper w/Quick Release |
Brake Levers | Tektro FL-750 |
Handlebars | 580mm, 25.4mm center clamp, 15d back sweep |
Tape/Grips | Black Ergo lock-on |
Stem | Alloy, 80mm x 100mm, 17d rise |
Headset | 1.125" threadless, alloy |
Seatpost | Forged, alloy, 27.2mm |
Saddle | Ergonomic black leatherette saddle |
Pedals | Alloy pedals, 9/16" |
* Subject to change without notice.
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Matte Indigo / Large | 817905102803 | B/AA233INM1562 | 210000079130 |
