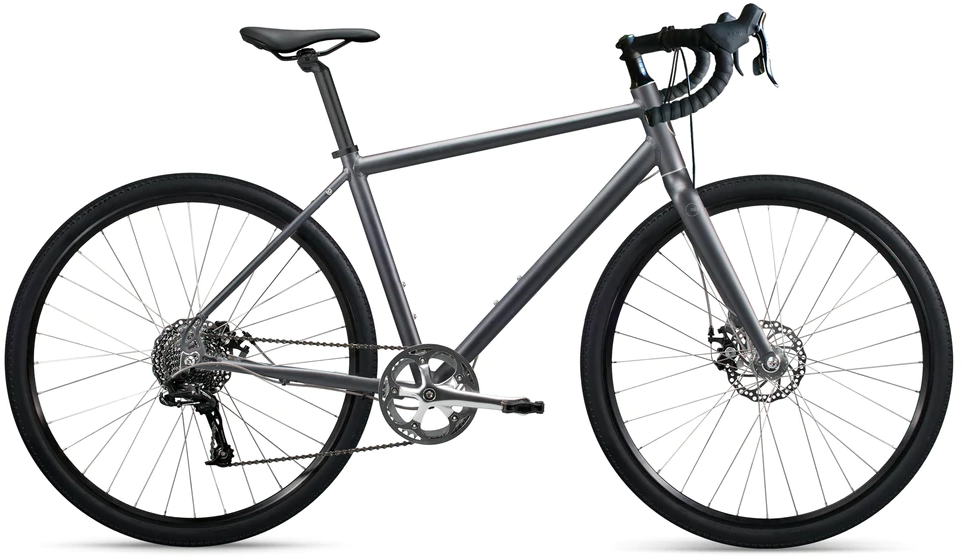

roll: Bicycle Company A:1R Adventure Road Bike
$1,299.99
Details
Our New A:1R was a process of reduction. The distillation of all its parts to the simplest, most capable, and most efficient combination, to produce a bike that performs far beyond its class. Designed to tackle longer gravel and multi-surface rides the A:1R is built for explorers and all day adventures. The A:1R is equally at home in town or country, beautifully designed, and like all of our bikes, can be fully outfitted with racks, luggage, and accessories to take you around the block or across the country.
| Frame Size | Size 1 | Size 2 | Size 3 |
|---|---|---|---|
| Top Tube Length, Horizontal | 580mm | 600mm | 620mm |
| Head Tube Length | 145mm | 170mm | 195mm |
| Head Tube Angle | 70.5° | 71.0° | 71.0° |
| Seat Tube Angle | 72.0° | 71.5° | 71.0° |
| Seat Tube Length | 430mm | 485mm | 540mm |
| BB Drop | 60mm | 60mm | 60mm |
| Fork Length, Full | 405mm | 405mm | 405mm |
| Fork Rake/Offset | 45mm | 45mm | 45mm |
| Chainstay Length | 450mm | 450mm | 450mm |
| Wheelbase | 1067mm | 1077mm | 1093mm |
| Bike Standover Height | 710mm | 755mm | 795mm |
| Frame Size | Rider Height |
|---|---|
| Size 1 | 5'0" – 5'5" |
| Size 2 | 5'6" – 5'11" |
| Size 3 | 6'0" – 6'4" |
Specs
| Frame | Light weight, double butted 6061 aluminum, with internal cable routing. |
|---|---|
| Fork | Hydro-formed 6061 aluminum disc specific, with alloy steerer tube. |
| Rims | 700c or 650b 32hole double wall anodized alloy. |
| Hubs | Polished aluminum disc, sealed cartridge bearings, bolt on QR Skewers. |
| Spokes | Stainless steel 14g spokes stainless steel nipples. |
| Tires | 700x40mm Kenda K1152 Flintridge Dual Tread. |
| Bottom Bracket | Alloy shell with sealed cartridge bearings, square taper steel axle. |
| Crankset | Forged 6061 aluminum polished crank arms, with alloy chain guard. |
| Chainrings | Front: 34 Tooth machined alloy, 3/32" |
| Shifters | SRAM Apex 1x10 DoubleTap shift lever brake. |
| Rear Derailleur | SRAM X5 10 Speed 1x10 long cage. |
| Cassette/Freewheel | SRAM PG-1030 10 speed 11-36 PowerGlide II |
| Chain | KMC X10-93 10 speed, silver. |
| Brakes | Tektro MD-M300, mechanical disc brake, with 160mm TR-1 Rotor. |
| Brake Levers | SRAM S-500 left brake lever. |
| Handlebars | 6061 Aluminum AR:1 Adventure Road bar, 440mm wide, 5.0° sweep |
| Tape/Grips | EVA vibration-damping foam tape. |
| Stem | 3D Forged aluminum alloy, +/- 7 degree rise |
| Headset | VP alloy semi integrated with sealed cartridge bearings |
| Seatpost | Aluminum alloy 30.9mm diameter with 0mm offset. |
| Saddle | Men's Road Saddle, with steel rails. |
| Pedals | Nylon platform with sealed bearings. |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| British Racing Green/Black Components / Medium | 735203309758 | BKE-1B-ADVR-MBRGB-M | 210000083562 |
| Matte Charcoal/Black Components / Medium | 735203194125 | BKE-1B-ADVR-MCHARB-M | 210000083564 |
| Matte Silver Ti/Black Components / Medium | 735203004073 | BKE-1B-ADVR-MSLVB-M | 210000083570 |
| Matte Silver Ti/Black Components / Large | 735203384830 | BKE-1B-ADVR-LSLVB-M | 210000083558 |
| Solar Orange/Black Components / Small | 735203439981 | BKE-1B-ADVR-SRNGB-M | 210000083588 |
